DM74S283 4-Bit Binary Adder with Fast Carry

DM74S283 Description

DM74S283 4-Bit Binary Adder with Fast Carry August 1986 Revised May 2000 DM74S283 4-Bit Binary Adder with Fast Carry General .
These full adders perform the addition of two 4-bit binary numbers.

DM74S283 Features

* s Full-carry look-ahead across the four bits s Systems achieve partial look-ahead performance with the economy of ripple carry s Typical add times Two 8-bit words 15 ns Two 16-bit words 30 ns s Typical power dissipation 510 mW Ordering Code: Order Number DM74S283N Package Number N16E Package Descri

📥 Download Datasheet

Preview of DM74S283 PDF

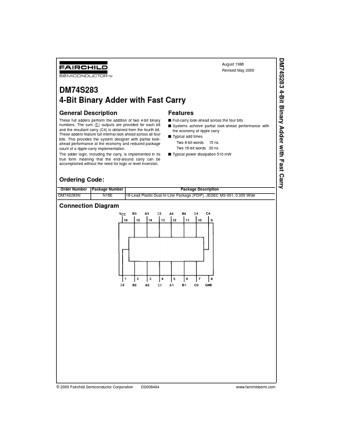

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DM74S283
Manufacturer
Fairchild Semiconductor
File Size
53.37 KB
Datasheet
DM74S283_FairchildSemiconductor.pdf
Description
4-Bit Binary Adder with Fast Carry
