FAN4800C - PFC/PWM Controller Combination

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

FAN4800C PFC/PWM Controller Combination by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – FAN4800C

Datasheet Details

Part number	FAN4800C
Manufacturer	Fairchild Semiconductor
File Size	932.88 KB
Description	PFC/PWM Controller Combination
Datasheet	FAN4800C Datasheet
Note	This datasheet PDF includes multiple part numbers: FAN4800C, FAN4800A. Please refer to the document for exact specifications by model.

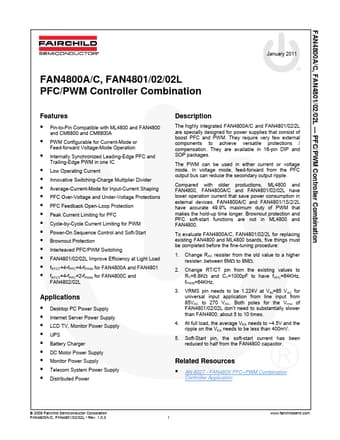

Additional preview pages of the FAN4800C datasheet.

Product details

Features

Pin-to-Pin Compatible with ML4800 and FAN4800 and CM6800 and CM6800A.
PWM Configurable for Current-Mode or Feed-forward Voltage-Mode Operation.
Internally Synchronized Leading-Edge PFC and Trailing-Edge PWM in one IC.
Low Operating Current.
Innovative Switching-Charge Multiplier Divider.
Average-Current-Mode for Input-Current Shaping.
PFC Over-Voltage and Under-Voltage Protections.
PFC Feedback Open-Loop Protection.
Peak Current Limiting for PFC.
