FAN5307 - High-Efficiency Step-Down DC-DC Converter

Description

The FAN5307, a high efficiency low noise synchronous PWM current mode and Pulse Skip (Power Save) mode DC-DC converter is designed for battery-powered applications.

It provides up to 300mA of output current over a wide input range from 2.5V to 5.5V.

Features

  • 95% Efficiency, Synchronous Operation Adjustable Output Voltage Option from 0.7V to VIN 2.5V to 5.5V Input Voltage Range Customized Fixed Output Voltage Options Up to 300mA Output Current Fixed Frequency 1MHz PWM Operation High Efficiency Power Save Mode 100% Duty Cycle Low Dropout Operation Soft Start Dynamic Output Voltage Positioning 15µA Quiescent Current.

📥 Download Datasheet

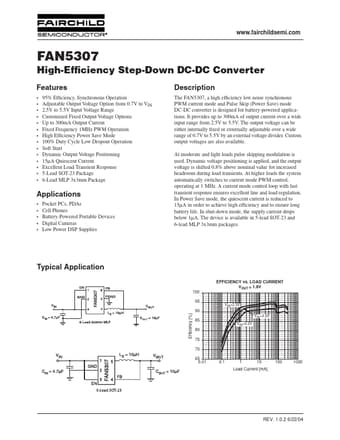

Datasheet preview – FAN5307
