FAN5400 - USB-Compliant Single Cell Li-Ion Switching Charger

Datasheet Summary

Description

The FAN5400 family (FAN540X) combines a highly integrated switch-mode charger, to minimize single-cell Lithium-ion (Liion) charging time from a USB power source, and a boost regulator to power a USB peripheral from the battery.

Features

  • Fully Integrated, High-Efficiency Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs Faster Charging than Linear Charge Voltage Accuracy: ±0.5% at 25°C ±1% from 0 to 125°C.

📥 Download Datasheet

Datasheet preview – FAN5400

Datasheet Details

Part number FAN5400
Manufacturer Fairchild Semiconductor
File Size 611.37 KB
Description USB-Compliant Single Cell Li-Ion Switching Charger
Datasheet download datasheet FAN5400 Datasheet
Additional preview pages of the FAN5400 datasheet.

📁 Similar Datasheet

  • FAN54015 - USB-Compliant Single-Cell Li-Ion Switching Charger (onsemi)
  • FAN54120 - 500mA USB Compatible Single Cell Li-Lon Linear Charger (ON Semiconductor)
  • FAN54161 - Battery Charging IC (ON Semiconductor)
  • FAN54511 - Switch Mode Charger (ON Semiconductor)
  • FAN5234 - Dual Mobile-Friendly PWM/PFM Controller (ON Semiconductor)
  • FAN5236 - Dual Mobile-Friendly DDR / Dual-Output PWM Controller (ON Semiconductor)
  • FAN53200 - Digitally Programmable Regulator (ON Semiconductor)
  • FAN5333A - High Current Serial LED Driver (ON Semiconductor)
  • FAN5333B - High Current Serial LED Driver (ON Semiconductor)
  • FAN5341 - Series Boost LED Driver (ON Semiconductor)
Other Datasheets by Fairchild Semiconductor
  • FAN5400 - USB-Compliant Single-Cell Li-Ion Switching Charger
  • FAN5401 - USB-Compliant Single-Cell Li-Ion Switching Charger
  • FAN54010 - USB-Compliant Single Cell Li-Ion Switching Charger
  • FAN54011 - USB-Compliant Single Cell Li-Ion Switching Charger
  • FAN54012 - USB-Compliant Single Cell Li-Ion Switching Charger
  • FAN54013 - USB-Compliant Single Cell Li-Ion Switching Charger
  • FAN54014 - USB-Compliant Single Cell Li-Ion Switching Charger
  • FAN54015 - USB-Compliant Single Cell Li-Ion Switching Charger

Full PDF Text Transcription

Click to expand full text

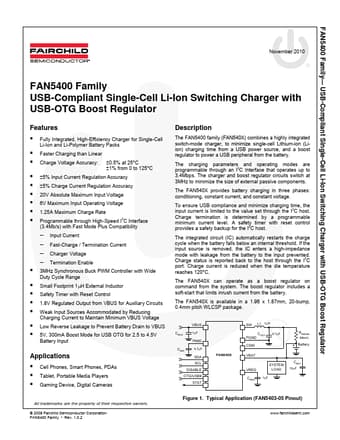

www.DataSheet.co.kr FAN5400 Family— USB-Compliant Single-Cell Li-Ion Switching Charger with USB-OTG Boost Regulator November 2010 FAN5400 Family USB-Compliant Single-Cell Li-Ion Switching Charger with USB-OTG Boost Regulator Features ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ Fully Integrated, High-Efficiency Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs Faster Charging than Linear Charge Voltage Accuracy: ±0.5% at 25°C ±1% from 0 to 125°C Description The FAN5400 family (FAN540X) combines a highly integrated switch-mode charger, to minimize single-cell Lithium-ion (Liion) charging time from a USB power source, and a boost regulator to power a USB peripheral from the battery. The charging parameters and operating modes are 2 programmable through an I C Interface that operates up to 3.4Mbps.
