FAN6754 - Highly Integrated Green-Mode PWM Controller

FAN6754 Description

FAN6754 * Highly Integrated Green-Mode PWM Controller September 2009 FAN6754 Highly Integrated Green-Mode PWM Controller Brownout and Consta.
The highly integrated FAN6754 PWM controller provides several features to enhance the performance of flyback converters.

FAN6754 Features

* High-Voltage Startup AC Input Brownout Protection with Hysteresis Low Operating Current: 1.7mA Linearly Decreasing PWM Frequency to 22KHz Frequency Hopping to Reduce EMI Emission Fixed PWM Fre

FAN6754 Applications

* General-purpose switch-mode power supplies and flyback power converters, including:
* Power Adapters Ordering Information Part Number FAN6754MRMY FAN6754MLMY Operating Temperature Range -40 to +105°C -40 to +105°C Eco Status RoHS RoHS Package 8-Pin, Small Outline Package (SOP) 8-Pin, Small

📥 Download Datasheet

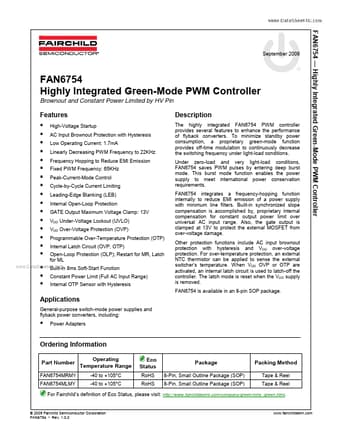

Preview of FAN6754 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN6754
Manufacturer
Fairchild Semiconductor
File Size
782.96 KB
Datasheet
FAN6754_FairchildSemiconductor.pdf
Description
Highly Integrated Green-Mode PWM Controller
