FAN7387 High-Voltage Gate Driver

The FAN7387 is a simple control IC for common halfbridge inverters, SMPS, and ballast for fluorescent and HID lamps. The FAN7387 has an oscillating circuit using an external resistor and capacitor. The frequency variation is very stable across a wide temperature range. The FAN7387 has an external pi.

FAN7387 Features

* D DE

* Internal Clock Using RCT W

* External Sync Function Using RCT E E

* Dead Time Control Using Resistor N

* Shut Down (Disable Mode) UOR i

* Internal Shunt Regulator F m N

* UVLO Function, High and Low Side TINNDEDR onseMATIO Applications ME OU OR

* Half-Bridge Invert

FAN7387-FairchildSemiconductor.pdf

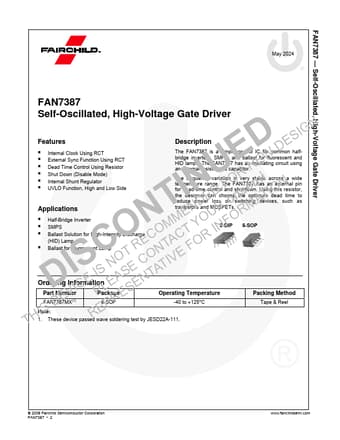

FAN7387 Datasheet Preview — Preview of FAN7387 PDF

Datasheet Details

Part number:

FAN7387

Manufacturer:

Fairchild Semiconductor

File Size:

2.56 MB

Description:

High-voltage gate driver.
