FDA59N25 - 250V N-Channel MOSFET

General Description

UniFETTM MOSFET is Fairchild Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology.

This MOSFET is tailored to reduce on-state resistance, and to provide better switching performance and higher avalanche energy strength.

Key Features

  • RDS(on) = 49 mΩ (Max. ) @ VGS = 10 V, ID = 29.5 A.
  • Low Gate Charge (Typ. 63 nC).
  • Low Crss (Typ. 70 pF).
  • 100% Avalanche Tested.
  • RoHS Compliant.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDA59N25 N-Channel MOSFET Transistor Inchange Semiconductor
FDA59N30 N-Channel MOSFET INCHANGE
FDA50N50 N-Channel MOSFET INCHANGE
FDA50N50 N-Channel MOSFET ON Semiconductor
FDA50N50 N-Channel MOSFET VBsemi

Other Datasheets by Fairchild (onsemi)

Part Number Description
FDA59N30 300V N-Channel MOSFET
FDA50N50 500V N-Channel MOSFET
FDA032N08 N-Channel MOSFET
FDA15N65 N-Channel MOSFET
FDA16N50 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

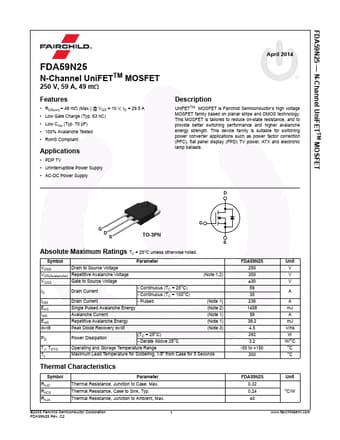

FDA59N25 — N-Channel UniFETTM MOSFET FDA59N25 N-Channel UniFETTM MOSFET 250 V, 59 A, 49 mΩ Features • RDS(on) = 49 mΩ (Max.) @ VGS = 10 V, ID = 29.5 A • Low Gate Charge (Typ. 63 nC) • Low Crss (Typ. 70 pF) • 100% Avalanche Tested • RoHS Compliant Applications • PDP TV • Uninterruptible Power Supply • AC-DC Power Supply April 2014 Description UniFETTM MOSFET is Fairchild Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on-state resistance, and to provide better switching performance and higher avalanche energy strength. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
