FDB0165N807L - 80V 310A N-Channel MOSFET

Datasheet Summary

Description

Max rDS(on) = 1.6 mΩ at VGS = 10 V, ID = 36 A Fast Switching Speed Low Gate Charge High Performance Trench Technology for Extremely Low rDS(on) High Power and Current Handling Capability RoHS Compliant This N-Channel MOSFET is produced us

Features

  • General.

📥 Download Datasheet

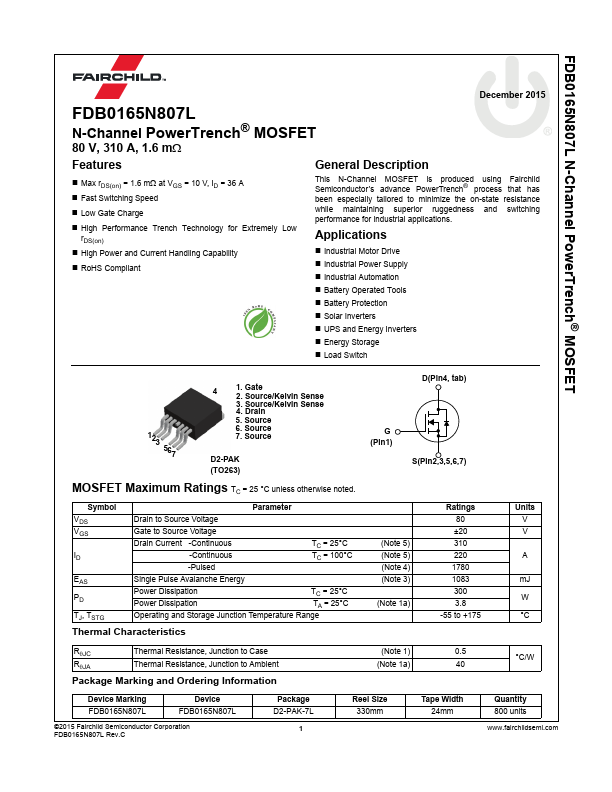

Datasheet preview – FDB0165N807L

Datasheet Details

Part number FDB0165N807L
Manufacturer Fairchild Semiconductor
File Size 278.75 KB
Description 80V 310A N-Channel MOSFET
Datasheet download datasheet FDB0165N807L Datasheet

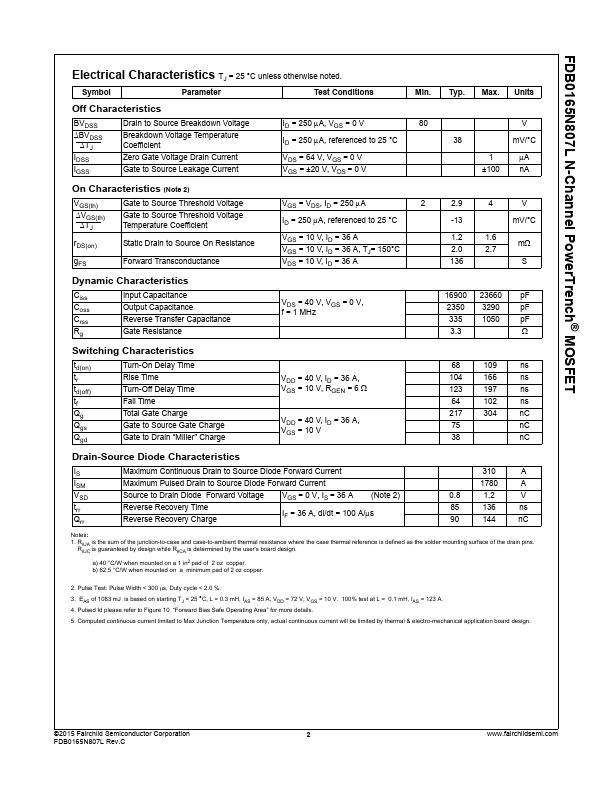

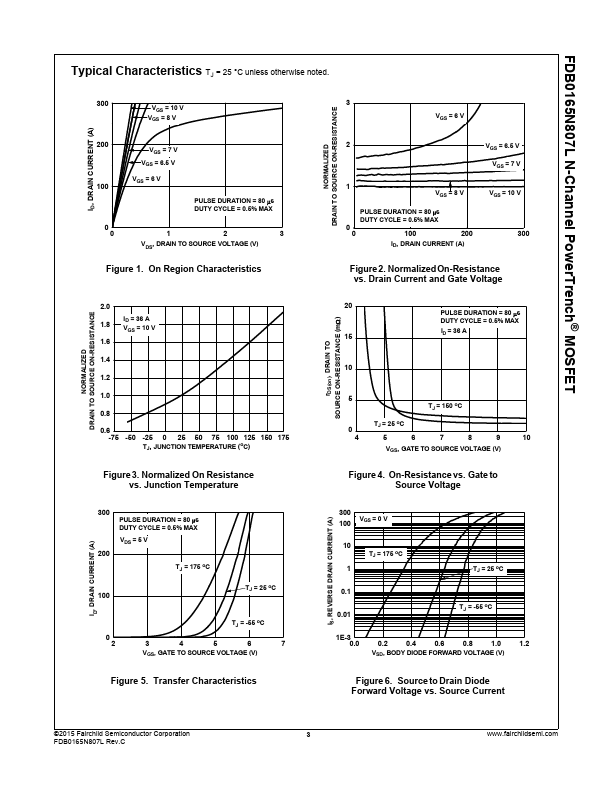

Additional preview pages of the FDB0165N807L datasheet.

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text
FDB0165N807L N-Channel PowerTrench® MOSFET December 2015 FDB0165N807L N-Channel PowerTrench® MOSFET 80 V, 310 A, 1.6 mΩ Features General Description „ Max rDS(on) = 1.6 mΩ at VGS = 10 V, ID = 36 A „ Fast Switching Speed „ Low Gate Charge „ High Performance Trench Technology for Extremely Low rDS(on) „ High Power and Current Handling Capability „ RoHS Compliant This N-Channel MOSFET is produced using Fairchild Semiconductor’s advance PowerTrench® process that has been especially tailored to minimize the on-state resistance while maintaining superior ruggedness and switching performance for industrial applications.
