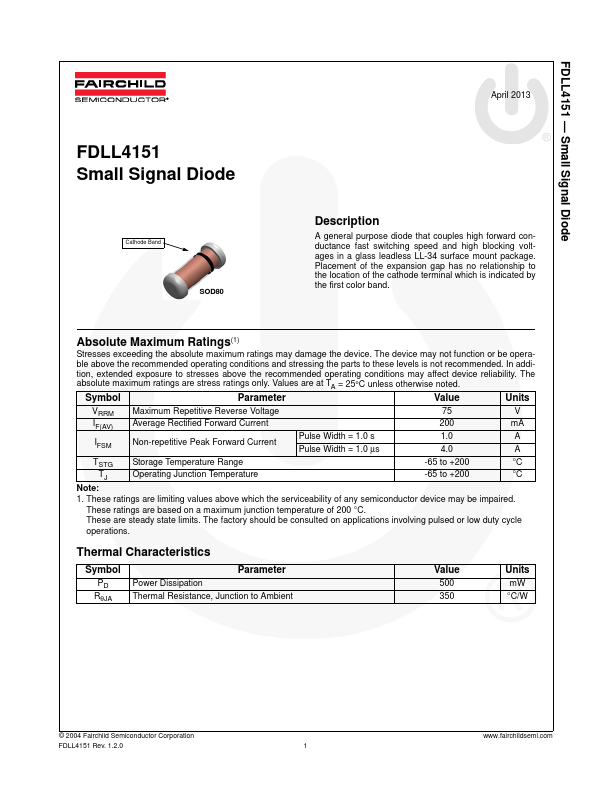

FDLL4151
Description
A general purpose diode that couples high forward conductance fast switching speed and high blocking voltages in a glass leadless LL-34 surface mount package. Placement of the expansion gap has no relationship to the location of the cathode terminal which is indicated by the first color band.
Absolute Maximum Ratings(1)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera- ble above the remended operating conditions and stressing the parts to these levels is not remended. In addi- tion, extended exposure to stresses above the remended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Values are at TA = 25°C unless otherwise noted.
Symbol
Parameter
Value
Units
VRRM IF(AV)
IFSM
Maximum Repetitive Reverse Voltage Average Rectified Forward Current
Non-repetitive Peak Forward Current
Pulse Width = 1.0 s Pulse Width = 1.0 μs
200 m...
