FDMA507PZ - Single P-Channel PowerTrench MOSFET

Fairchild Semiconductor

📥 Download Datasheet

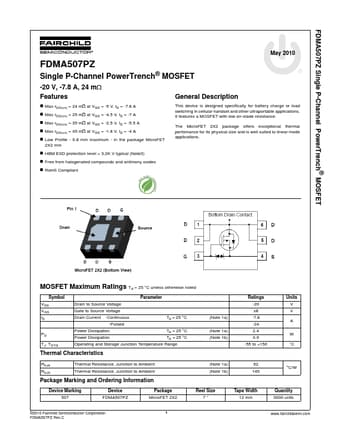

FDMA507PZ Datasheet Preview — Preview of FDMA507PZ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FDMA507PZ
Manufacturer	Fairchild ↗ Semiconductor
File Size	267.17 KB
Description	Single P-Channel PowerTrench MOSFET
Datasheet	FDMA507PZ-FairchildSemiconductor.pdf

FDMA507PZ Product details

Description

This device is designed specifically for battery charge or load switching in cellular handset and other ultraportable applications.

Features

Max rDS(on) = 24 mΩ at VGS = -5 V, ID = -7.8 A.
Max rDS(on) = 25 mΩ at VGS = -4.5 V, ID = -7 A.
Max rDS(on) = 35 mΩ at VGS = -2.5 V, ID = -5.5 A.
Max rDS(on) = 45 mΩ at VGS = -1.8 V, ID = -4 A.
Low Profile - 0.8 mm maximum - in the package MicroFET 2X2 mm.
HBM ESD protection level > 3.2K V typical (Note3).
Free from halogenated compounds and antimony oxides.
RoHS Compliant General.
