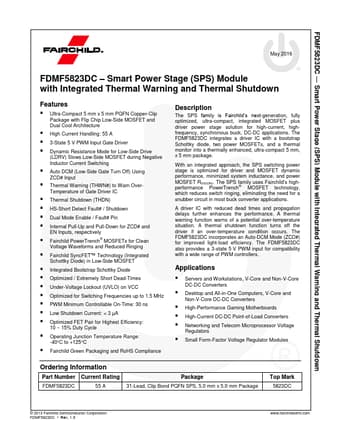

FDMF5823DC - Smart Power Stage (SPS) Module

Fairchild Semiconductor

Datasheet Details

Part number	FDMF5823DC
Manufacturer	Fairchild ↗ Semiconductor
File Size	1.08 MB
Description	Smart Power Stage (SPS) Module
Datasheet	FDMF5823DC-FairchildSemiconductor.pdf

Ultra-Compact 5 mm x 5 mm PQFN Copper-Clip Package with Flip Chip Low-Side MOSFET and Dual Cool Architecture.
High Current Handling: 55 A.
3-State 5 V PWM Input Gate Driver.
Dynamic Resistance Mode for Low-Side Drive (LDRV) Slows Low-Side MOSFET during Negative Inductor Current Switching.
Auto DCM (Low-Side Gate Turn Off) Using ZCD# Input.
Thermal Warning (THWN#) to Warn Over- Temperature of Gate Driver IC.
Thermal Shutdown (THDN).
HS-Short Detect Fault#.
