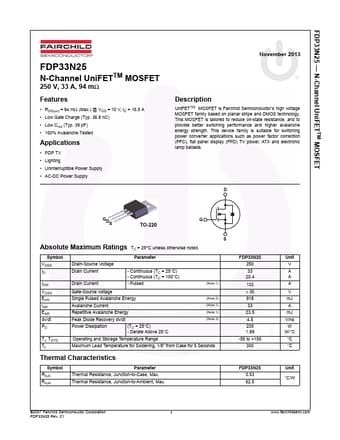

FDP33N25
Features
- RDS(on) = 94 mΩ (Max.) @ VGS = 10 V, ID = 16.5 A
- Low Gate Charge (Typ. 36.8 n C)
- Low Crss (Typ. 39 p F)
- 100% Avalanche Tested
Applications
- PDP TV
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
November 2013
Description
Uni FETTM MOSFET is Fairchild Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on-state resistance, and to provide better switching performance and higher avalanche energy strength. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
TO-220
Absolute Maximum Ratings TC = 25o C unless otherwise noted.
Symbol
Parameter
VDSS ID
IDM VGSS EAS IAR EAR dv/dt PD
TJ, TSTG TL
Drain-Source Voltage Drain Current
Drain Current
- Continuous (TC = 25°C)
- Continuous (TC = 100°C)
- Pulsed
(Note 1)
Gate-Source voltage
Single Pulsed...
