FDP3682 N-Channel MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

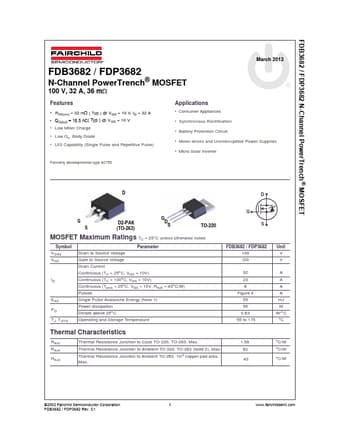

FDB3682 / FDP3682 N-Channel PowerTrench ® MOSFET FDB3682 / FDP3682 N-Channel PowerTrench® MOSFET 100 V, 32 A, 36 mΩ March 2013 .

📥 Download Datasheet

Preview of FDP3682 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FDP3682
Manufacturer
Fairchild Semiconductor
File Size
2.26 MB
Datasheet
FDP3682_FairchildSemiconductor.pdf
Description
N-Channel MOSFET

Features

* RDS(on) = 32 mΩ ( Typ. ) @ VGS = 10 V, ID = 32 A
* QG(tot) = 18.5 nC( Typ. ) @ VGS = 10 V
* Low Miller Charge
* Low Qrr Body Diode

Applications

* Consumer Appliances
* Synchronous Rectification
* Battery Protection Circuit
* Motor drives and Uninterruptible Power Supplies
* Micro Solar Inverter Formerly developmental type 82755 D D G S D2-PAK (TO-263) G D S TO-220 MOSFET Maximum Ratings TC = 2
