FFAF10U20

ULTRA FAST RECOVERY POWER RECTIFIER

FFAF10U20 Features

* Ultrafast with soft recovery

* Low forward voltage Applications

* Power switching circuits Output rectifiers Freewheeling diodes Switching mode power supply TO-220F TO-3PF 1 2 3 1. Anode 2.Cathode 3. Anode ULTRA FAST RECOVERY POWER RECTIFIER

FFAF10U20 Datasheet (55.08 KB)

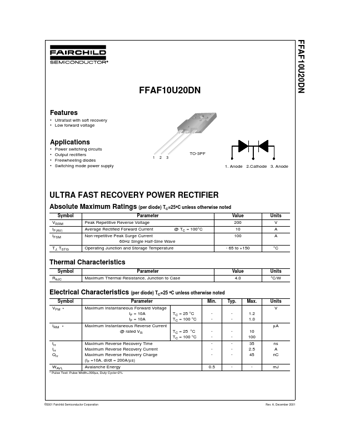

Preview of FFAF10U20 PDF

Datasheet Details

Part number:

FFAF10U20

Manufacturer:

Fairchild Semiconductor

File Size:

55.08 KB

Description:

Ultra fast recovery power rectifier.
