FFAF60UA60DN

UItrafast II Dual Diode

FFAF60UA60DN Features

* Ultrafast Recovery, Trr < 90ns (@ IF = 30 A)

* Max Forward Voltage, VF = 2.2 V (@ TC = 25°C)

* 600V Reverse Voltage and High Reliability

* Avalanche Energy Rated

* RoHS Compliant Applications

* Boost Diode in PFC and SMPS

* Welder, UPS and Mo

FFAF60UA60DN General Description

The FFAF60UA60DN is an ultrafast ll dual diode with low forward voltage drop and rugged UIS capability. This device is intended for use as freewheeling and clamping diodes in a variety of switching power supplies and other power switching applications. It is specially suited for use in switching pow.

FFAF60UA60DN Datasheet (732.29 KB)

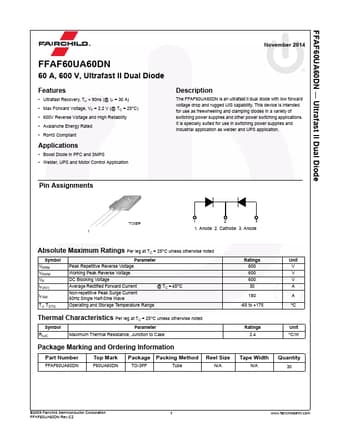

Preview of FFAF60UA60DN PDF

Datasheet Details

Part number:

FFAF60UA60DN

Manufacturer:

Fairchild Semiconductor

File Size:

732.29 KB

Description:

Uitrafast ii dual diode.
