FGA15N120ANTDTU - IGBT

Fairchild Semiconductor

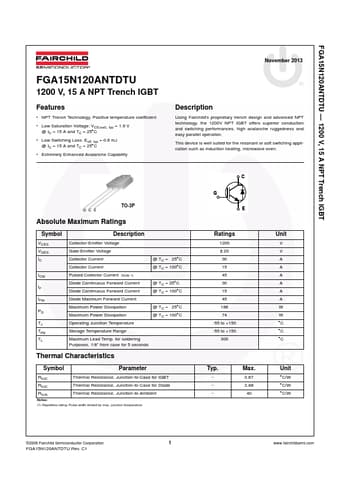

The FGA15N120ANTDTU by Fairchild Semiconductor is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

FGA15N120ANTDTU IGBT by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FGA15N120ANTDTU** IGBT datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FGA15N120ANTDTU
Manufacturer	Fairchild Semiconductor
File Size	504.75 KB
Description	IGBT
Datasheet	FGA15N120ANTDTU-FairchildSemiconductor.pdf
Additional preview pages of the FGA15N120ANTDTU datasheet.

FGA15N120ANTDTU Product details

Description

Using Fairchild's proprietary trench design and advanced NPT technology, the 1200V NPT IGBT offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation.

Features

NPT Trench Technology, Positive temperature coefficient.
Low Saturation Voltage: VCE(sat), typ = 1.9 V @ IC = 15 A and TC = 25C.
Low Switching Loss: Eoff, typ = 0.6 mJ @ IC = 15 A and TC = 25C.
Extremely Enhanced Avalanche Capability November 2013.
