FGA15N120FTD - 15A Field Stop Trench IGBT

Description

Using advanced field stop trench technology, Fairchild®’s 1200V trench IGBTs offer superior conduction and switching performances for soft switching applications.

The device can operate in parallel configuration with exceptional avalanche ruggedness.

Features

Field Stop Trench Technology.
High Speed Switching.
Low Saturation Voltage: VCE(sat) = 1.58 V @ IC = 15 A.
High Input Impedance.
RoHS Complaint.

Fairchild (onsemi)

📥 Download Datasheet

FGA15N120FTD 15a field stop trench igbt by Fairchild Semiconductor - Datasheet Preview

Datasheet Details

Part number	FGA15N120FTD
Manufacturer	Fairchild (onsemi)
File Size	204.08 KB
Description	15A Field Stop Trench IGBT
Datasheet	FGA15N120FTD Datasheet

📁 Similar Datasheet

FGA15N120ANTDTU - IGBT (ON Semiconductor)
FGA10 - Photodiodes (Thorlabs)
FGA04 - Photodiodes (Thorlabs)
FGA25N120 - NPT Trench IGBT (ON Semiconductor)
FGA25N120ANTDTU - NPT Trench IGBT (ON Semiconductor)
FGA25N120ANTDTU-F109 - NPT Trench IGBT (ON Semiconductor)
FGA25S125P - 25A Shorted-anode IGBT (ON Semiconductor)
FGA40N65SMD - Field Stop IGBT (onsemi)
FGAF20S65AQ - IGBT (ON Semiconductor)
FGAF30S65AQ - IGBT (ON Semiconductor)

Other Datasheets by Fairchild Semiconductor

FGA15N120AN - NPT Igbt
FGA15N120AND - IGBT
FGA15N120ANTD - 1200V NPT Trench IGBT
FGA15N120ANTDTU - IGBT
FGA15S125P - IGBT
FGA120N30D - 300V PDP IGBT
FGA180N30D - 300V PDP IGBT
FGA180N33AT - 180A PDP Trench IGBT

Full PDF Text Transcription

Click to expand full text

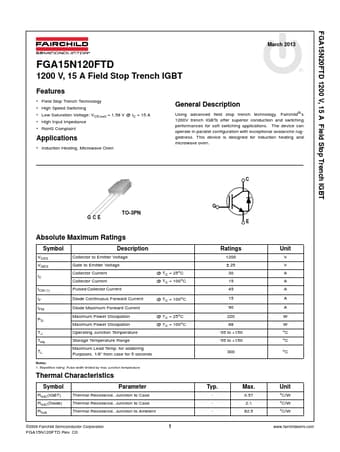

FGA15N20FTD 1200 V, 15 A Field Stop Trench IGBT March 2013 FGA15N120FTD 1200 V, 15 A Field Stop Trench IGBT Features • Field Stop Trench Technology • High Speed Switching • Low Saturation Voltage: VCE(sat) = 1.58 V @ IC = 15 A • High Input Impedance • RoHS Complaint Applications • Induction Heating, Microwave Oven General Description Using advanced field stop trench technology, Fairchild®’s 1200V trench IGBTs offer superior conduction and switching performances for soft switching applications. The device can operate in parallel configuration with exceptional avalanche ruggedness. This device is designed for induction heating and microwave oven.
