FGH40N60SFD

40A Field Stop IGBT

FGH40N60SFD Features

* High Current Capability

* Low Saturation Voltage: VCE(sat) = 2.3 V @ IC = 40 A

* High Input Impedance

* Fast Switching

* RoHS Compliant Applications

* Solar Inverter, UPS, Welder, PFC, Microwave Oven, Telecom, ESS General Description Using novel fie

FGH40N60SFD General Description

Using novel field stop IGBT technology, Fairchild’s field stop IGBTs offer the optimum performance for solar inverter, UPS, welder, microwave oven, telecom, ESS and PFC applications where low conduction and switching losses are essential. E C G COLLECTOR (FLANGE) Absolute Maximum Ratings Symbol .

FGH40N60SFD Datasheet (359.34 KB)

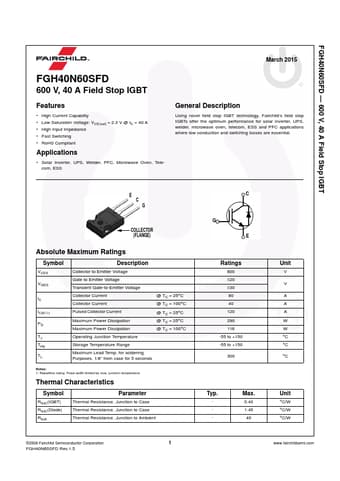

Preview of FGH40N60SFD PDF

Datasheet Details

Part number:

FGH40N60SFD

Manufacturer:

Fairchild Semiconductor

File Size:

359.34 KB

Description:

40a field stop igbt.
