FL5150, IGBT and MOSFET AC Phase Cut Dimmer Controller

FL5150/60 * IGBT and MOSFET AC Phase Cut Dimmer Controller May 2016 FL5150/60 IGBT and MOSFET AC Phase Cut Dimmer Controller .
The FL5150 and FL5160 are controllers for varying the pulse width for AC loads.

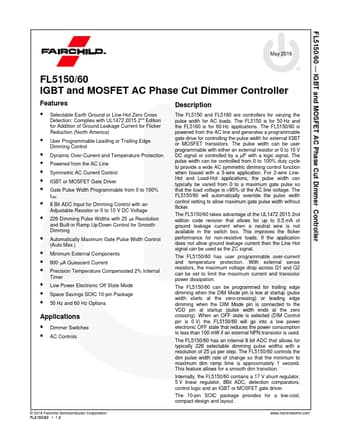

datasheet Preview Page 1 from Datasheet4u.com

FL5150-FairchildSemiconductor.pdf

FL5150 Datasheet Preview — Preview of FL5150 PDF

Datasheet Details

Part number:

FL5150

Manufacturer:

Fairchild Semiconductor

File Size:

913.28 KB

Description:

IGBT and MOSFET AC Phase Cut Dimmer Controller

Features

* Selectable Earth Ground or Line-Hot Zero Cross Detection: Complies with UL1472 2015 2nd Edition for Addition of Ground Leakage Current for Flicker Reduction (North America)
* User Programmable Leading or Trailing Edge Dimming Control
* Dynamic Over-Current and Temperature Protection

Applications

* Dimmer Switches
