FM24C128 Datasheet - Fairchild Semiconductor

FM24C128 128K-Bit Standard 2-Wire Bus Interface Serial EEPROM

FM24C128 is a 128Kbit CMOS non-volatile serial EEPROM organized as 16K x 8 bit memory. This device confirms to Extended IIC 2-wire protocol that allows accessing of memory in excess of 16Kbit on an IIC bus. This serial communication protocol uses a Clock signal (SCL) and a Data signal (SDA) to synch.

FM24C128 Features

* I Extended operating voltage: 2.5V to 5.5V I Up to 400 KHz clock frequency at 2.5V to 5.5V I Low power consumption

* 0.5mA active current typical

* 10µA standby current typical

* 1µA standby current typical (L version)

* 0.1µA standby current typical (LZ version) I Sc

FM24C128-FairchildSemiconductor.pdf

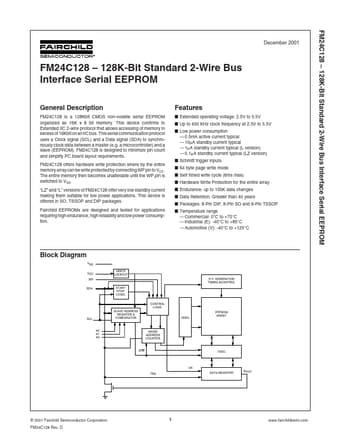

Preview of FM24C128 PDF
FM24C128 Datasheet Preview Page 2 FM24C128 Datasheet Preview Page 3

Datasheet Details

Part number:

FM24C128

Manufacturer:

Fairchild Semiconductor

File Size:

98.72 KB

Description:

128k-bit standard 2-wire bus interface serial eeprom.
