FM24C64 Datasheet - Fairchild Semiconductor

64K-Bit Standard 2-Wire Bus Interface Serial EEPROM

FM24C64 Features

* I Extended operating voltage: 2.5V to 5.5V I Up to 400 KHz clock frequency at 2.5V to 5.5V I Low power consumption

* 0.5mA active current typical

* 10µA standby current typical

* 1µA standby current typical (L version)

* 0.1µA standby current typical (LZ version) I Sc

FM24C64 General Description

FM24C64 is a 64Kbit CMOS non-volatile serial EEPROM organized as 8K x 8 bit memory. This device confirms to Extended IIC 2-wire protocol that allows accessing of memory in excess of 16Kbit on an IIC bus. This serial communication protocol uses a Clock signal (SCL) and a Data signal (SDA) to synchron.

FM24C64 Datasheet (100.56 KB)

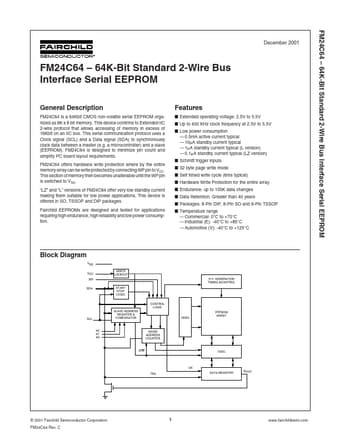

FM24C64 Datasheet Preview — Preview of FM24C64 PDF

Datasheet Details

Part number:

FM24C64

Manufacturer:

Fairchild Semiconductor

File Size:

100.56 KB

Description:

64k-bit standard 2-wire bus interface serial eeprom.
FM24C64 64K-Bit Standard 2-Wire Bus Interface Serial EEPROM December 2001 FM24C64 64K-Bit Standard 2-Wire Bus Interface Serial E.
