FMB100 NPN Multi-Chip General Purpose Amplifier

FMB100 Discrete POWER & Signal Technologies FMB100 C2 E1 C1 B2 E2 pin #1 B1 SuperSOT™-6 Mark: .NA NPN Multi-Chip General Purpose Amplifier This device is designed for general purpose amplifier applications at collector currents to 300 mA. Sourced from Process 10. Absolute Maximum Ratings Symbol VCEO VCBO VEBO IC TJ, Tstg Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous Collector-Emitter Voltage TA =25°C unless otherwise noted Parameter Value 45 75 6.0 500 .

FMB100_FairchildSemiconductor.pdf

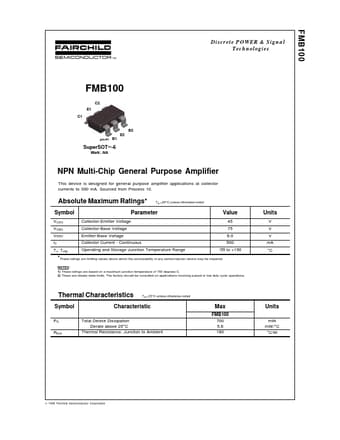

FMB100 Datasheet Preview — Preview of FMB100 PDF

Datasheet Details

Part number:

FMB100

Manufacturer:

Fairchild Semiconductor

File Size:

44.07 KB

Description:

Npn multi-chip general purpose amplifier.
