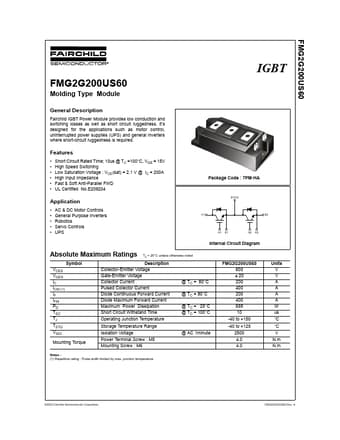

FMG2G200US60 Datasheet, Module, Fairchild Semiconductor

FMG2G200US60 Features

• Module
• Short Circuit Rated Time; 10us @ TC =100°C, VGE = 15V High Speed Switching Low Saturation Voltage : VCE(sat) = 2.1 V @ IC = 2

PDF File Details

Part number:

FMG2G200US60

Manufacturer:

Fairchild Semiconductor

File Size:

726.73kb

Download:

📄 Datasheet

Description:

Molding type module. Fairchild IGBT Power Module provides low conduction and switching losses as well as short circuit ruggedness. It’s designed for the a

FMG2G200US60 Application

• Applications such as motor control, uninterrupted power supplies (UPS) and general inverters where short-circuit ruggedness is required. Features <
