FSA2268T - Low-Voltage Dual-SPDT

This page provides the datasheet information for the FSA2268T, a member of the FSA2268 Low-Voltage Dual-SPDT family.

Description

The FSA2268 is a high-performance, dual Single Pole Double Throw (SPDT) analog switch that

Features

  • 0.4Ω Typical On Resistance (RON) for +3.0V Supply 0.25Ω Maximum RON Flatness for +3.0V Supply -3db Bandwidth: > 50MHz Low ICCT Current Over an Expanded Control Input Range Packaged in Pb-free 10-Lead µMLP (1.4 x 1.8mm) Power-Off Protection on Common Ports Broad VCC Operating Range: 1.65 to 4.3V HBM JEDEC: JESD22-A114 - I/O to GND: 13.5kV - Power to GND: 16.0kV Noise Immunity Termination Resistors in FSA2268T.

📥 Download Datasheet

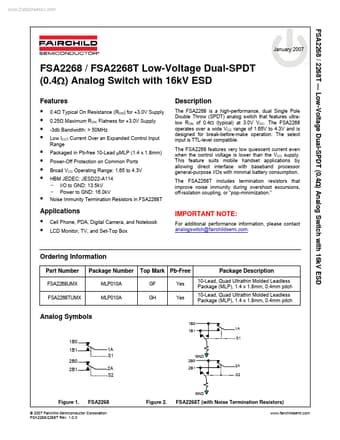

Datasheet preview – FSA2268T

Datasheet Details

Part number FSA2268T
Manufacturer Fairchild Semiconductor
File Size 115.81 KB
Description Low-Voltage Dual-SPDT
Datasheet download datasheet FSA2268T Datasheet
