FSA2269TS - Low-Voltage Dual-SPDT (0.4ohm) Analog Switch

This page provides the datasheet information for the FSA2269TS, a member of the FSA2269 Low-Voltage Dual-SPDT (0.4ohm) Analog Switch family.

Description

The FSA2269 is a high-performance, dual Single-Pole Double-Throw (SPDT) analog switch with negative swing audio capability.

Features

  • 0.4 Ω Typical On Resistance (RON) for +3.0 V Supply.
  • 0.25 Ω Ma ximum RON Flatness for +3.0 V Supply.
  • -3 db Bandwidth: > 50 MHz.
  • Low-ICCT Current Over an Expanded Control Input Range.
  • Packaged in 10-Lead MicroPak™, UMLP, and WLCSP.
  • Power-Off Protection on Common Ports.
  • Broad VCC Operating Range: 1.65 to 4.5 V.
  • Noise Immunity Termination Resistors in FSA2269TS.

📥 Download Datasheet

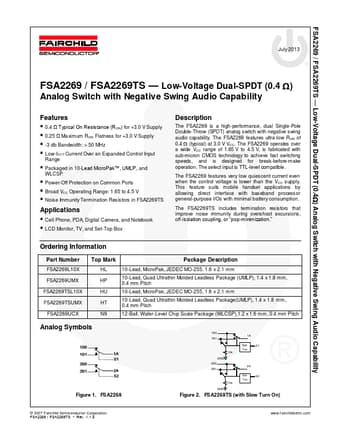

Datasheet preview – FSA2269TS

Datasheet Details

Part number FSA2269TS
Manufacturer Fairchild Semiconductor
File Size 964.35 KB
Description Low-Voltage Dual-SPDT (0.4ohm) Analog Switch
Datasheet download datasheet FSA2269TS Datasheet
Additional preview pages of the FSA2269TS datasheet.

📁 Similar Datasheet

  • FSA2268 - Low-Voltage Dual-SPDT Analog Switch (ON Semiconductor)
  • FSA2268T - Low-Voltage Dual-SPDT Analog Switch (ON Semiconductor)
  • FSA2259 - Dual-SPDT Analog Switch (ON Semiconductor)
  • FSA2270T - Dual-SPDT Analog Switch (ON Semiconductor)
  • FSA2457 - Dual DPDT Analog Data Switch (ON Semiconductor)
  • FSA2466 - DATA/AUDIO Low-Voltage Dual DPDT Analog Switch (ON Semiconductor)
  • FSA2510M - Monolithic Diode Arrays (ETC)
  • FSA2510P - Monolithic Diode Arrays (ETC)
  • FSA2563M - Monolithic Diode Arrays (ETC)
  • FSA2563P - Monolithic Diode Arrays (ETC)
Other Datasheets by Fairchild Semiconductor
  • FSA2269 - Low-Voltage Dual-SPDT (0.4ohm) Analog Switch
  • FSA2267 - Low Voltage Dual SPDT Analog Switch
  • FSA2267A - Low Voltage Dual SPDT Analog Switch
  • FSA2268 - Low-Voltage Dual-SPDT
  • FSA2268T - Low-Voltage Dual-SPDT
  • FSA221 - USB2.0 High-Speed (480Mbps) and Audio Switches
  • FSA223 - USB2.0 High-Speed (480Mbps) and Audio Switches
  • FSA2257 - Dual SPDT Bi-Directional Analog Switch

Full PDF Text Transcription

Click to expand full text
FSA2269 / FSA2269TS — Low-Voltage Dual-SPDT (0.4) Analog Switch with Negative Swing Audio Capability July 2013 FSA2269 / FSA2269TS — Low-Voltage Dual-SPDT (0.4 ) Analog Switch with Negative Swing Audio Capability Features  0.4 Ω Typical On Resistance (RON) for +3.0 V Supply  0.25 Ω Ma ximum RON Flatness for +3.0 V Supply  -3 db Bandwidth: > 50 MHz  Low-ICCT Current Over an Expanded Control Input Range  Packaged in 10-Lead MicroPak™, UMLP, and WLCSP  Power-Off Protection on Common Ports  Broad VCC Operating Range: 1.65 to 4.
