FSB127H, FSB117H - mWSaver Fairchild Power Switch (FPS)

FSB127H Description

FSB117H / FSB127H / FSBH147H * mWSaver™ Fairchild Power Switch (FPS™) FSB117H / FSB127H / FSB147H mWSaver™ Fairchild Power Switch (FPS™) Fea.
The FSB-series is a next-generation, green-mode Fairchild Power Switch (FPS™) incorporating Fairchild’s innovative mWSaver™ technology, which dramatic.

FSB127H Features

* mWSaver™ Technology
* Achieve Low No-Load Power Consumption Less than 40 mW at 230 VAC (EMI Filter Loss Included)
* Meets 2013 ErP Standby Power Regulation (Less than 0.5 W Consumption with 0.25 W Load) for ATX Power and LCD TV Power
* Eliminate X-Cap Discharge Resistor Loss with AX-CAP™

FSB127H Applications

* General-purpose switched-mode power supplies and flyback power converters, including:
* Auxiliary Power Supply for PC, Server, LCD TV, and Game Console
* SMPS for VCR, SVR, STB, DVD, and DVCD Player, Printer, Facsimile, and Scanner
* General Adapter
* LCD Monitor Power / Open-Frame S

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FSB127H, FSB117H. Please refer to the document for exact specifications by model.

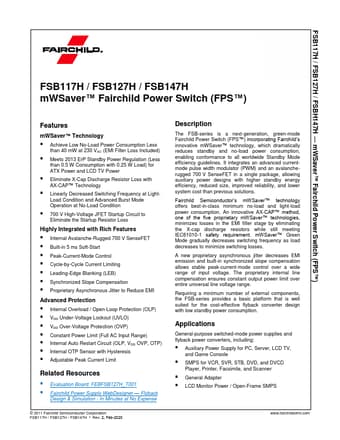

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FSB127H, FSB117H
Manufacturer
Fairchild Semiconductor
File Size
1.34 MB
Datasheet
FSB117H-FairchildSemiconductor.pdf
Description
mWSaver Fairchild Power Switch (FPS)
Note
This datasheet PDF includes multiple part numbers: FSB127H, FSB117H.
Please refer to the document for exact specifications by model.
