FSCM0765R Datasheet - Fairchild Semiconductor

Green Mode Fairchild Power Switch

FSCM0765R Features

* Green Mode Fairchild Power Switch (FPSTM)

* Internal Avalanche Rugged Sense FET

* Low startup current (max 40uA)

* Low power consumption under 1 W at 240VAC & 0.4W load

* Precise Fixed Operating Frequency (66kHz)

* Frequency Modulation for low EMI

* P

FSCM0765R General Description

The FSCM0765R is an integrated Pulse Width Modulator (PWM) and Sense FET specifically designed for high performance offline Switch Mode Power Supplies (SMPS) with minimal external components. This device is an integrated high voltage power switching regulator which combine an avalanche rugged Sense .

FSCM0765R Datasheet (484.44 KB)

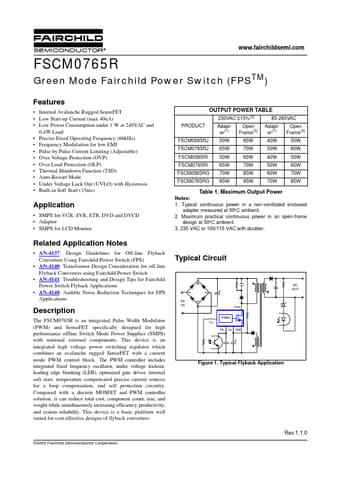

FSCM0765R Datasheet Preview — Preview of FSCM0765R PDF

Datasheet Details

Part number:

FSCM0765R

Manufacturer:

Fairchild Semiconductor

File Size:

484.44 KB

Description:

Green mode fairchild power switch.
