FSCQ1565RT Datasheet - Fairchild Semiconductor

Green Mode Fairchild Power Switch

FSCQ1565RT Features

* Optimized for Quasi-Resonant Converter (QRC)

* Advanced Burst-Mode Operation for under 1 W Standby Power Consumption

* Pulse-by-Pulse Current Limit

* Overload Protection (OLP)

* Auto Restart

* Over-Voltage Protection (OVP)

* Auto Restart

* Abnormal Over-Curr

FSCQ1565RT General Description

A Quasi-Resonant Converter (QRC) typically shows lower EMI and higher power conversion efficiency compared to a conventional hard-switched converter with a fixed switching frequency. Therefore, a QRC is well suited for noise-sensitive applications, such as color TV and audio. Each product in the FSC.

FSCQ1565RT Datasheet (2.30 MB)

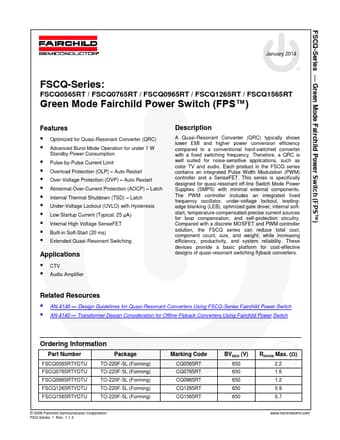

FSCQ1565RT Datasheet Preview — Preview of FSCQ1565RT PDF

Datasheet Details

Part number:

FSCQ1565RT

Manufacturer:

Fairchild Semiconductor

File Size:

2.30 MB

Description:

Green mode fairchild power switch.
FSCQ-Series Green Mode Fairchild Power Switch (FPS™) January 2014 FSCQ-Series: FSCQ0565RT / FSCQ0765RT / FSCQ0965RT / FSCQ1265RT / FSCQ156.
