FSD210 - Green Mode Fairchild Power Switch

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	FSD210
Manufacturer	Fairchild Semiconductor
File Size	391.12 KB
Description	Green Mode Fairchild Power Switch
Datasheet	FSD210 Datasheet

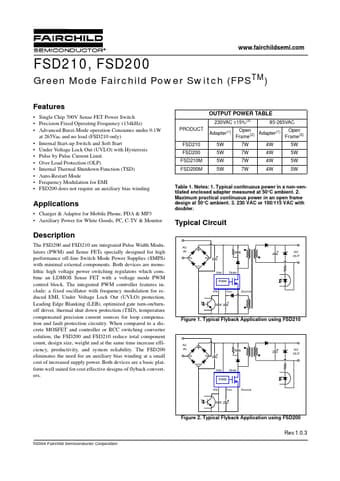

Additional preview pages of the FSD210 datasheet.

Product details

Description

The FSD200 and FSD210 are integrated Pulse Width Modulators (PWM) and Sense FETs specially designed for high performance off-line Switch Mode Power Supplies (SMPS) with minimal external components.

Features

Green Mode Fairchild Power Switch (FPSTM).
Single Chip 700V Sense FET Power Switch.
Precision Fixed Operating Frequency (134kHz).
Advanced Burst-Mode operation Consumes under 0.1W at 265Vac and no load (FSD210 only).
Internal Start-up Switch and Soft Start.
Under Voltage Lock Out (UVLO) with Hysteresis.
Pulse by Pulse Current Limit.
Over Load Protection (OLP).
Internal Thermal Shutdown Function (TSD).
Auto-Restart.
