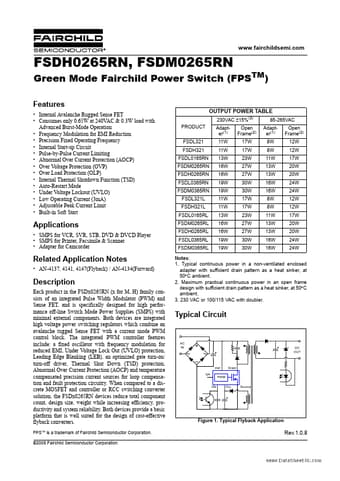

FSDM0265RN Green Mode Fairchild Power Switch

Each product in the FSDx0265RN (x for M, H) family consists of an integrated Pulse Width Modulator (PWM) and Sense FET, and is specifically designed for high performance off-line Switch Mode Power Supplies (SMPS) with minimal external components. Both devices are integrated high voltage power switch.

FSDM0265RN Features

* Internal Avalanche Rugged Sense FET

* Consumes only 0.65W at 240VAC & 0.3W load with Advanced Burst-Mode Operation

* Frequency Modulation for EMI Reduction

* Precision Fixed Operating Frequency

* Internal Start-up Circuit

* Pulse-by-Pulse Current Lim
