FSFR2100USL, FSFR2100US Power Switch

Fairchild Semiconductor

Description

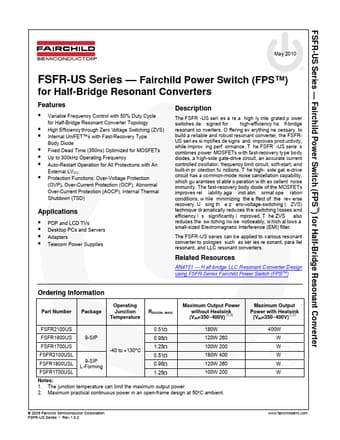

FSFR-US Series * Fairchild Power Switch (FPS™) for Half-Bridge Resonant Converter May 2010 FSFR-US Series * Fairchild Power Switch (.
The FSFR -US seri es a re a high ly inte grated p ower switches de signed for high-efficiency ha lf-bridge resonant co nverters.

📥 Download Datasheet

FSFR2100USL Datasheet Preview — This datasheet PDF includes multiple part numbers: FSFR2100USL, FSFR2100US. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: FSFR2100USL, FSFR2100US
Manufacturer: Fairchild Semiconductor
File Size: 683.97 KB
Datasheet: FSFR2100US-FairchildSemiconductor.pdf
Description: Power Switch
Note: This datasheet PDF includes multiple part numbers: FSFR2100USL, FSFR2100US.
Please refer to the document for exact specifications by model.

Features

* Variable Frequency Control with 50% Duty Cycle for Half-Bridge Resonant Converter Topology High Efficiency through Zero Voltage Switching (ZVS) Internal UniFET™s with Fast-Recovery Type Body Diode Fixed Dead Time (350ns) Optimized for MOSFETs Up to 300kHz Op

Applications

* PDP and LCD TVs Desktop PCs and Servers Adapters Telecom Power Supplies Related Resources AN4151
* H alf-bridge LLC Resonant C onverter D esign TM using FSFR-Series Fairchild Power Switch (FPS ) Ordering Information Part Number FSFR2100US FSFR1800US FSFR1700US FSFR2
