FSL136MR - Green Mode Fairchild Power Switch

Description

The FSL136MR integrated Pulse Width Modulator (PWM) and SenseFET is specifically designed for highperformance offline Switch-Mode Power Supplies (SMPS) with minimal external components.

Features

  • Internal Avalanche-Rugged SenseFET (650V) Under 50mW Standby Power Consumption at 265VAC, No-load Condition with Burst Mode Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI Internal Startup Circuit Built-in Soft-Start: 15ms Pulse-by-Pulse Current Limiting Various Protections: Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Abnormal Over-Current Protection (AOCP), Internal Thermal S.

📥 Download Datasheet

Datasheet preview – FSL136MR

Datasheet Details

Part number FSL136MR
Manufacturer Fairchild Semiconductor
File Size 912.92 KB
Description Green Mode Fairchild Power Switch
Datasheet download datasheet FSL136MR Datasheet

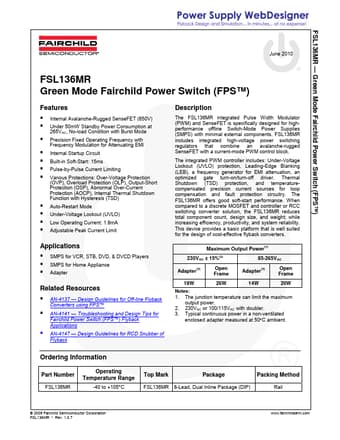

Additional preview pages of the FSL136MR datasheet.
