FSQ0265 - Green Mode Fairchild Power Switch

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	FSQ0265
Manufacturer	Fairchild Semiconductor
File Size	647.95 KB
Description	Green Mode Fairchild Power Switch
Datasheet	FSQ0265 Datasheet
Note	This datasheet PDF includes multiple part numbers: FSQ0265, FSQ0165. Please refer to the document for exact specifications by model.

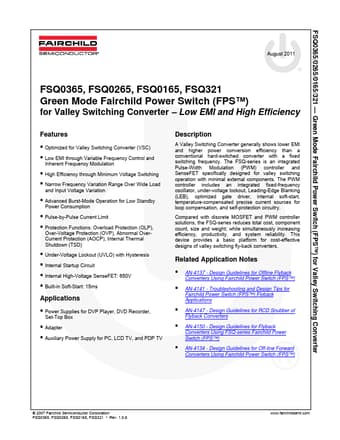

Additional preview pages of the FSQ0265 datasheet.

Product details

Description

A Valley Switching Converter generally shows lower EMI and higher power conversion efficiency than a conventional hard-switched converter with a fixed switching frequency.

Features

Optimized for Valley Switching Converter (VSC).
Low EMI through Variable Frequency Control and Inherent Frequency Modulation.
High Efficiency through Minimum Voltage Switching.
Narrow Frequency Variation Range Over Wide Load and Input Voltage Variation.
Advanced Burst-Mode Operation for Low Standby Power Consumption.
Pulse-by-Pulse Current Limit.
Protection Functions: Overload Protection (OLP), Over-Voltage Protection (OVP), Abnormal OverCurrent Protection (AO.
