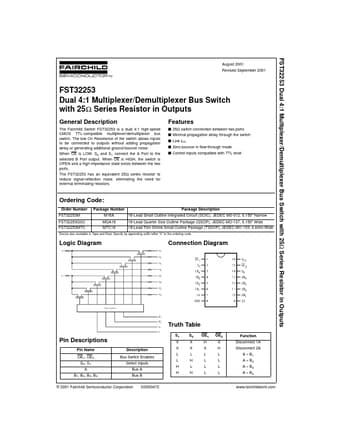

FST32253MTC Datasheet, Outputs, Fairchild Semiconductor

FST32253MTC Features

• Outputs s 25Ω switch connection between two ports s Minimal propagation delay through the switch s Low lCC s Zero bounce in flow-through mode s Control inputs compatible with TTL level Orderin

PDF File Details

Part number:

FST32253MTC

Manufacturer:

Fairchild Semiconductor

File Size:

142.84kb

Download:

📄 Datasheet

Description:

Dual 4:1 multiplexer/demultiplexer bus switch with 25 series resistor in outputs. The Fairchild Switch FST32253 is a dual 4:1 high-speed CMOS TTL-compatible multiplexer/demultiplexer bus switch. The low On Resistanc
