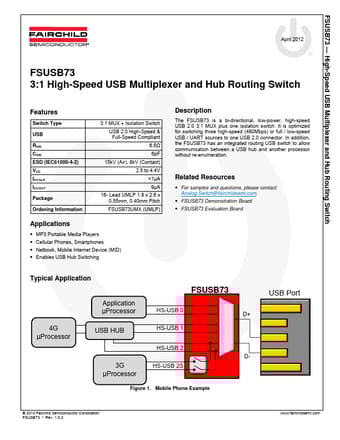

FSUSB73
Features
Switch Type
RON CON ESD (IEC61000-4-2) VCC ICCSLP ICCACT
Package
Ordering Information
3:1 MUX + Isolation Switch USB 2.0 High-Speed & Full-Speed pliant 6.5Ω 6p F
15k V (Air), 8k V (Contact) 2.5 to 4.4V <1µA 9µA
16- Lead UMLP 1.8 x 2.6 x 0.55mm, 0.40mm Pitch FSUSB73UMX (UMLP)
Applications
- MP3 Portable Media Players
- Cellular Phones, Smartphones
- Netbook, Mobile Internet Device (MID)
- Enables USB Hub Switching
Description
The FSUSB73 is a bi-directional, low-power, high-speed USB 2.0 3:1 MUX plus one isolation switch. It is optimized for switching three high-speed (480Mbps) or full / low-speed USB / UART sources to one USB 2.0 connector. In addition, the FSUSB73 has an integrated routing USB switch to allow munication between a USB hub and another processor without re-enumeration.
Related Resources
- For samples and questions, please contact:
Analog.Switch@fairchildsemi..
- FSUSB73 Demonstration Board
- FSUSB73 Evaluation Board
Typical Application
4G µProcessor
Appli...
