FSV1045V - 10A 45V Ultra-Low VF Schottky Rectifier

Datasheet Summary

Description

The FSV1045V schottky rectifier offers break-through size and performance.

The device is optimized for mobile charger applications.

It sinks only 18 mA reverse current at high temperature and provides forward voltage drop of 0.18 V at 1 A operating current in a charger design.

Features

  • Ultra-Low Forward Voltage Drop: - 0.41 V Typical at 10 A, TA = 25°C - 0.44 V Maximum at 10 A, TA = 25°C.
  • Low Thermal Resistance.
  • Very Low Profile: Typical Height of 1.1 mm.
  • RoHS Compliant.
  • Halogen Free.
  • Meets MSL 1 per JESD22-A111 Full-Body Solder Immersion.

📥 Download Datasheet

Datasheet preview – FSV1045V

Datasheet Details

Part number FSV1045V
Manufacturer Fairchild Semiconductor
File Size 201.72 KB
Description 10A 45V Ultra-Low VF Schottky Rectifier
Datasheet download datasheet FSV1045V Datasheet

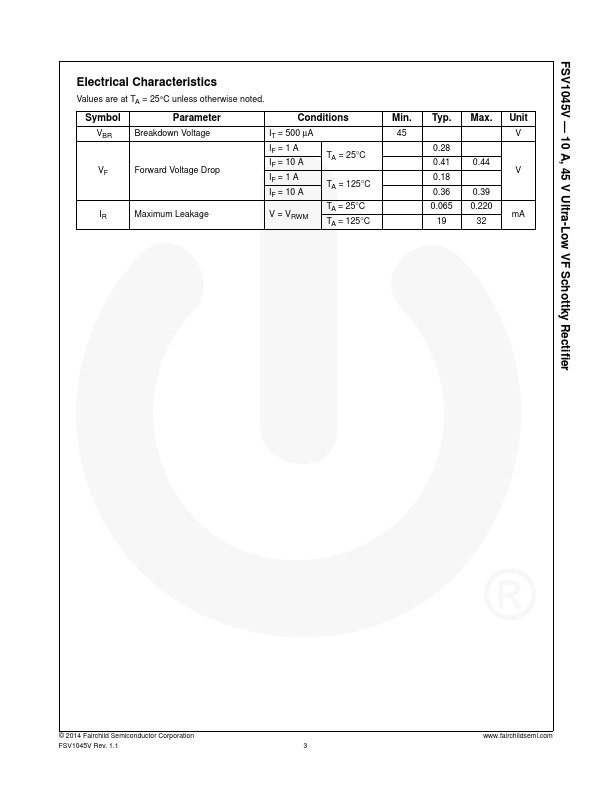

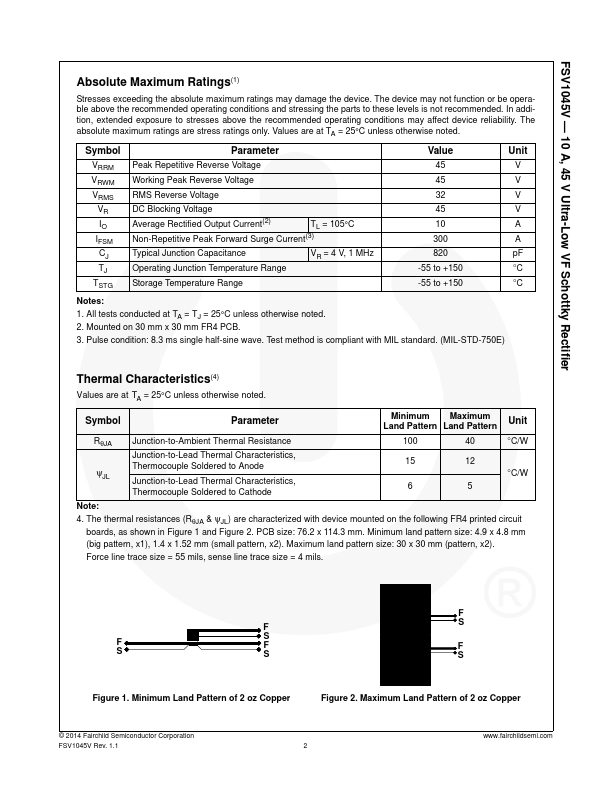

Additional preview pages of the FSV1045V datasheet.

📁 Similar Datasheet

  • FSV1045V - 10A 45V Schottky Rectifier (onsemi)
  • FSV10100V - Ultra-Low VF Schottky Rectifier (ON Semiconductor)
  • FSV10120V - Ultra-Low VF Schottky Rectifier (ON Semiconductor)
  • FSV1060V - Schottky Rectifier (ON Semiconductor)
  • FSV14A001 - FSV14A001 (ETC)
  • FSV14A004 - FSV14A004 (ETC)
  • FSV15120V - Ultra-Low VF Schottky Rectifier (ON Semiconductor)
  • FSV15150V - Ultra-Low VF Schottky Rectifier (ON Semiconductor)
  • FSV-14A004C - Data Travo Flyback (ETC)
  • FSV20100V - Ultra-Low VF Schottky Rectifier (ON Semiconductor)
Other Datasheets by Fairchild Semiconductor
  • FSV15150V - 150V Ultra-Low VF Schottky Rectifier
  • FSV240AF - Surface Mount Schottky Barrier Rectifier
  • FSV330AF - Schottky Barrier Rectifier
  • FSV340AF - Schottky Barrier Rectifier
  • FSV530AF - Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text

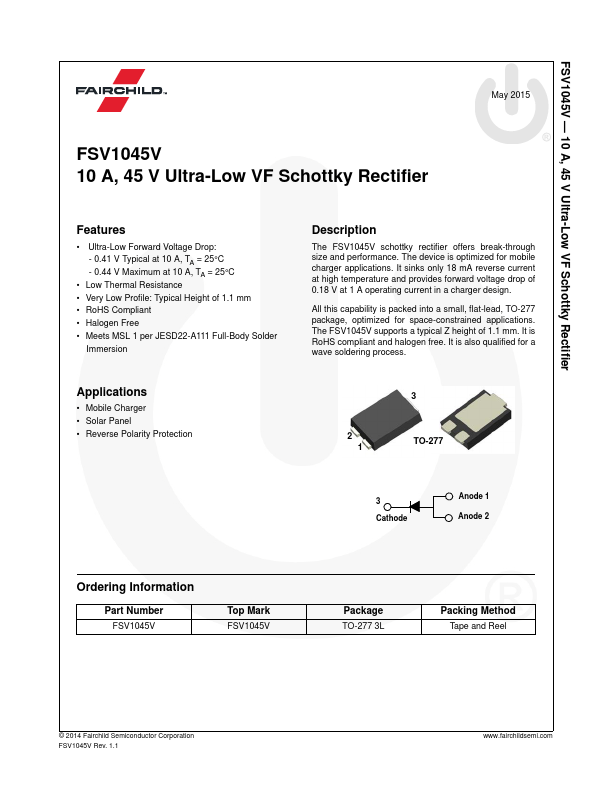

FSV1045V — 10 A, 45 V Ultra-Low VF Schottky Rectifier May 2015 FSV1045V 10 A, 45 V Ultra-Low VF Schottky Rectifier Features • Ultra-Low Forward Voltage Drop: - 0.41 V Typical at 10 A, TA = 25°C - 0.44 V Maximum at 10 A, TA = 25°C • Low Thermal Resistance • Very Low Profile: Typical Height of 1.1 mm • RoHS Compliant • Halogen Free • Meets MSL 1 per JESD22-A111 Full-Body Solder Immersion Applications • Mobile Charger • Solar Panel • Reverse Polarity Protection Description The FSV1045V schottky rectifier offers break-through size and performance. The device is optimized for mobile charger applications. It sinks only 18 mA reverse current at high temperature and provides forward voltage drop of 0.18 V at 1 A operating current in a charger design.
