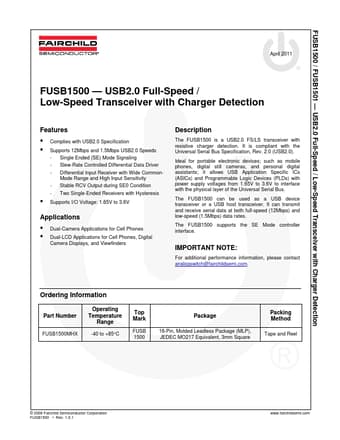

FUSB1500 Datasheet | Fairchild Semiconductor

Features - plies with USB2.0 Specification - Supports 12Mbps and 1.5Mbps USB2.0 Speeds - Single Ended (SE) Mode Signaling - Slew-Rate Controlled Differential Data Driver - Differential Input Receiver with Wide mon- Mode Range and High Input Sensitivity - Stable RCV Output during SE0 Condition - Two Single-Ended Receivers with Hysteresis - Supports I/O Voltage: 1.65V to 3.6V Applications - Dual-Camera Applications for Cell Phones - Dual-LCD Applications for Cell Phones, Digital Camera Displays, and Viewfinders Description The FUSB1500 is a USB2.0 FS/LS transceiver with resistive charger detection. It is pliant with the Universal Serial Bus Specification, Rev. 2.0 (USB2.0). Ideal for portable electronic devices; such as mobile phones, digital still cameras, and personal digital assistants; it allows USB Application Specific ICs (ASICs) and Programmable Logic Devices (PLDs) with power supply voltages from 1.65V to 3.6V to interface with the physical layer of the Universal Serial Bus. The FUSB1500 can be used as a USB device transceiver or a USB host transceiver. It can transmit and receive serial data at both full-speed (12Mbps) and low-speed (1.5Mbps) data rates. The FUSB1500 supports the SE Mode controller interface. IMPORTANT NOTE: For additional performance information, please contact analogswitch@fairchildsemi.. Ordering Information Part Number FUSB1500MHX Operating Temperature Range -40 to +85°C Top Mark FUSB 1500 Package 16-Pin, Molded Leadless Package (MLP), JEDEC MO217 Equivalent, 3mm Square Packing Method Tape and Reel © 2008 Fairchild Semiconductor Corporation FUSB1500 - Rev. 1.0.1 .fairchildsemi. FUSB1500 / FUSB1501 - USB2.0 Full-Speed / Low-Speed Transceiver with Charger Detection Block Diagram INT_N SUSPEND SPEED_N...
