FYD0504SA

SCHOTTKY BARRIER RECTIFIER

FYD0504SA Features

* Low forward voltage drop

* High frequency properties and switching speed

* Guard ring for over-voltage protection 4 2. 4. Cathode Applications

* Switched mode power supply

* Freewheeling diodes 1 2 3 D-PAK 1. Anode 3. Anode SCHOTTKY BARRIER RECTIFIER A

FYD0504SA Datasheet (66.81 KB)

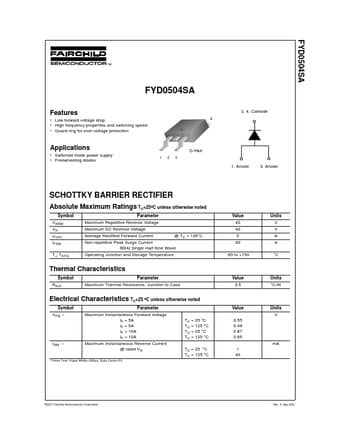

Preview of FYD0504SA PDF

Datasheet Details

Part number:

FYD0504SA

Manufacturer:

Fairchild Semiconductor

File Size:

66.81 KB

Description:

Schottky barrier rectifier.
