HFA50HF20 Soft Recovery Diode

HFA50HF20 Description

www.DataSheet4U.com PD 2.506 PRELIMINARY HFA50HF20 Ultrafast, Soft Recovery Diode CATHODE HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

HFA50HF20 Features

* TM VR = 200V V F = 0.96V Qrr
* = 640nC di(rec)M/dt
* = 980A/µs

HFA50HF20 Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM SMD -1 Absolute Maximum Ratings (per Leg) Parameter VR I F @ TC = 100°C I FSM @ TC = 25°C PD @ TC = 25°C TJ TSTG D. C. Reverse Voltage

📥 Download Datasheet

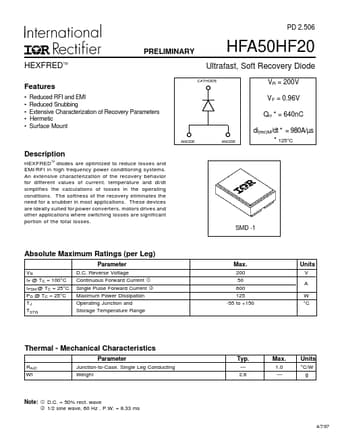

Preview of HFA50HF20 PDF
datasheet Preview Page 2 datasheet Preview Page 3
