HLMP-6405A, SUBMINIATURE T-3/4 LED DIFFUSED and CLEAR LAMPS

SUBMINIATURE T-3/4 LED DIFFUSED and CLEAR LAMPS HIGH EFF.RED YELLOW GREEN AIGaAs RED HLMP-6305A HLMP-6405A HLMP-6505A HLMP-Q105A Water Water Water Wa.
These T-3/4 subminiature LED lamps feature a square-base, transfer molded package for surface mount applications.

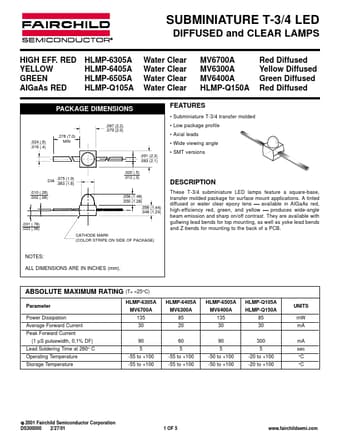

datasheet Preview Page 1 from Datasheet4u.com

HLMP-6405A_FairchildSemiconductor.pdf

HLMP-6405A Datasheet Preview — Preview of HLMP-6405A PDF

Datasheet Details

Part number:

HLMP-6405A

Manufacturer:

Fairchild Semiconductor

File Size:

104.57 KB

Description:

SUBMINIATURE T-3/4 LED DIFFUSED and CLEAR LAMPS

Features

* Subminiature T-3/4 transfer molded
* Low package profile
* Axial leads
* Wide viewing angle .091 (2.3) .083 (2.1)

Applications

* A tinted diffused or water clear epoxy lens  available in AIGaAs red, high-efficiency red, green, and yellow  produces wide-angle beam emission and sharp on/off contrast. They are available with gullwing lead bends for top mounting, as well as yoke lead bends and Z-bends for mounting to the back
