IN4728A One Watt Zeners

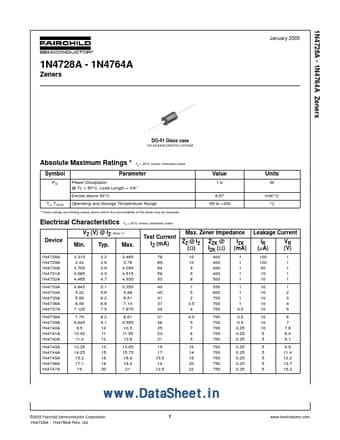

1N4728A - 1N4764A Zeners January 2005 1N4728A - 1N4764A Zeners DO-41 Glass case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings Symbol PD Ta = 25°C unless otherwise noted Parameter Power Dissipation @ TL ≤ 50°C, Lead Length = 3/8” Derate above 50°C Value 1.0 6.67 -65 to +200 Units W mW/°C °C TJ, TSTG Operating and Storage Temperature Range These ratings are limiting values above which the serviceability of the diode may be impaired. Electrical Characteristics Device 1.
