ISL9V3036D3S - N-Channel Ignition IGBT

Fairchild Semiconductor

ISL9V3036D3S Description

ISL9V3036D3S / ISL9V3036S3S / ISL9V3036P3 October 2013 ISL9V3036D3S / ISL9V3036S3S / ISL9V3036P3 EcoSPARK® 300mJ, 360V, N-Channel Ignition IGBT Gen.
The ISL9V3036D3S, ISL9V3036S3S, and ISL9V3036P3 are the next generation IGBTs that offer outstanding SCIS capability in the space saving D-Pak (TO-252.

ISL9V3036D3S Features

* Industry Standard D2-Pak package
* SCIS Energy = 300mJ at TJ = 25oC
* Logic Level Gate Drive EcoSPARK® devices can be custom made to specific clamp voltages. Contact your nearest Fairchild sales office for more information. Formerly Developmental Type 49442 Package JEDEC

ISL9V3036D3S Applications

* Automotive Ignition Coil Driver Circuits

📥 Download Datasheet

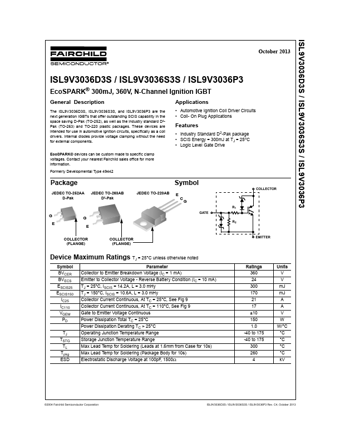

ISL9V3036D3S Datasheet Preview — Preview of ISL9V3036D3S PDF

Datasheet Details

Part number: ISL9V3036D3S
Manufacturer: Fairchild Semiconductor
File Size: 446.20 KB
Datasheet: ISL9V3036D3S-FairchildSemiconductor.pdf
Description: N-Channel Ignition IGBT
