KA5L0265R, KA5H02659RN - Power Switch

KA5L0265R Description

www.fairchildsemi.com KA5x02xx-SERIES KA5H0265RC, KA5M0265R, KA5L0265R, KA5H02659RN/KA5M02659RN, KA5H0280R, KA5M0280R Fairchild Power Switch(FPS) F.
The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components.

KA5L0265R Features

* Precision Fixed Operating Frequency (100/67/50kHz)
* Low Start-up Current (Typ. 100uA)
* Pulse by Pulse Current Limiting
* Over Load Protection
* Over Voltage Protection (Min. 25V)
* Internal Thermal Shutdown Function
* Under Voltage Lockout

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KA5L0265R, KA5H02659RN. Please refer to the document for exact specifications by model.

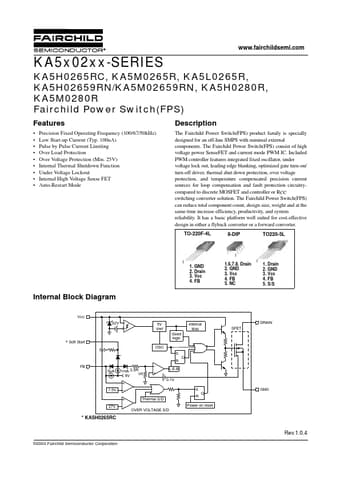

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KA5L0265R, KA5H02659RN
Manufacturer
Fairchild Semiconductor
File Size
138.68 KB
Datasheet
KA5H02659RN_FairchildSemiconductor.pdf
Description
Power Switch
Note
This datasheet PDF includes multiple part numbers: KA5L0265R, KA5H02659RN.
Please refer to the document for exact specifications by model.
