KA7405D - 2-Channel DC Motor Driver

Description

The KA7405D is a monolithic integrated circuit, and suitable for the zoom and reel motor driver for camera, tape deck, any other consumer and industrial applications.

Camera zoom and film motors General DC motor Ordering Information Device KA740

Features

  • Output current up to 1.5A (Each channel).
  • 4-function modes (CW, CCW, stop and brake) are controlled by 2-logic circuits.
  • Operating voltage range: VCC = 2.5 ~ 6.0V.
  • Built-in spike killer diode.
  • Low saturation voltage.

📥 Download Datasheet

Datasheet preview – KA7405D

Datasheet Details

Part number KA7405D
Manufacturer Fairchild Semiconductor
File Size 208.29 KB
Description 2-Channel DC Motor Driver
Datasheet download datasheet KA7405D Datasheet
Additional preview pages of the KA7405D datasheet.

📁 Similar Datasheet

  • KA741 - Single Operational Amplifier (Fairchild)
  • KA7226 - DUAL EQUALIZER AMPLIFIER WITH ALC (Samsung)
  • KA723 - Precision Voltage Regulator (Fairchild)
  • KA7302D - GENERAL DISCRIPTION (Samsung)
  • KA7305 - B/W CCD PROCESSOR (Samsung)
  • KA7307D - GENERAL DESCRIPTION (Samsung)
  • KA7500 - single monolithic chip (HUAFUQIN)
  • KA7500 - Switching - type pulse width control circuit (H&M Semiconductor)
  • KA7500 - single monolithic chip (Estek Electronics)
  • KA7500B - VOLTAGE-MODE PWM CONTROLLER (Samsung)
Other Datasheets by Fairchild Semiconductor
  • KA7521 - ELECTRONIC BALLAST CONTROLLER
  • KA7522 - DIMMING BALLAST CONTROLLER
  • KA7522D - DIMMING BALLAST CONTROLLER
  • KA75360 - Voltage Detector
  • KA75390 - Voltage Detector
  • KA7805AE - 3-Terminal 1A Positive Voltage Regulator
  • KA7805E - 3-Terminal 1A Positive Voltage Regulator
  • KA7805R - 3-Terminal 1A Positive Voltage Regulator

Full PDF Text Transcription

Click to expand full text

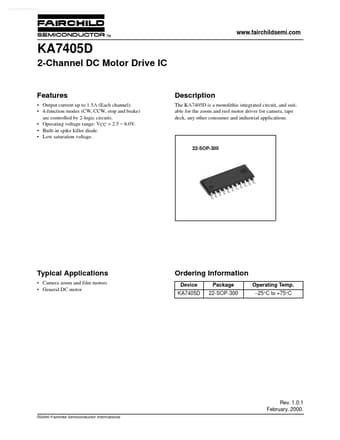

www.DataSheet4U.com www.fairchildsemi.com KA7405D 2-Channel DC Motor Drive IC Features • Output current up to 1.5A (Each channel). • 4-function modes (CW, CCW, stop and brake) are controlled by 2-logic circuits. • Operating voltage range: VCC = 2.5 ~ 6.0V. • Built-in spike killer diode. • Low saturation voltage. Description The KA7405D is a monolithic integrated circuit, and suitable for the zoom and reel motor driver for camera, tape deck, any other consumer and industrial applications. 22-SOP-300 Typical Applications • Camera zoom and film motors • General DC motor Ordering Information Device KA7405D Package 22-SOP-300 Operating Temp. −25°C to +75°C Rev. 1.0.1 February. 2000.
