KH560 - Wideband/ Low Distortion Driver Amplifier

KH560 Description

www.fairchildsemi.com KH560 Wideband, Low Distortion Driver Amplifier .
The KH560 is a wideband DC coupled, amplifier that combines high output drive and low distortion.

KH560 Applications

* The two resistors comprising the feedback network set both the gain and the output impedance, without requiring the series backmatch resistor needed by most op amps. This allows driving into a matched load without dropping half the voltage swing through a series matching resistor. External compensa

📥 Download Datasheet

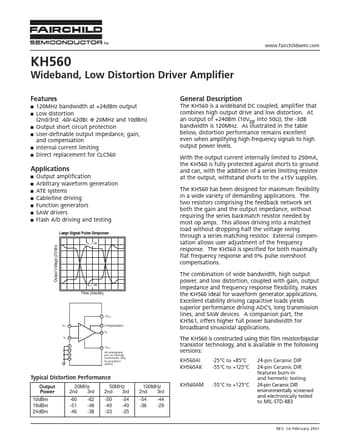

Preview of KH560 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KH560
Manufacturer
Fairchild Semiconductor
File Size
182.99 KB
Datasheet
KH560_FairchildSemiconductor.pdf
Description
Wideband/ Low Distortion Driver Amplifier
