KSA1150 Datasheet - Fairchild Semiconductor

KSA1150 Low Frequency Power Amplifier

KSA1150 KSA1150 Low Frequency Power Amplifier Collector Dissipation : PC = 300mW Complement to KSC2710 1 TO-92S 1.Emitter 2. Collector 3. Base PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Collector Power Dissipation Junction Temperature Storage Temperature.

KSA1150_FairchildSemiconductor.pdf

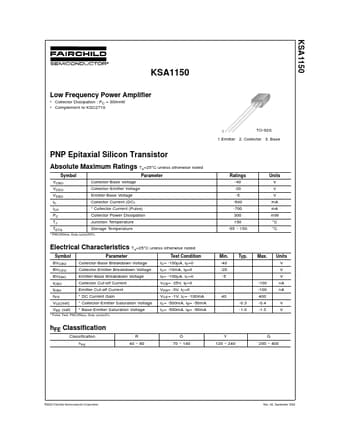

Preview of KSA1150 PDF
KSA1150 Datasheet Preview Page 2 KSA1150 Datasheet Preview Page 3

Datasheet Details

Part number:

KSA1150

Manufacturer:

Fairchild Semiconductor

File Size:

40.55 KB

Description:

Low frequency power amplifier.
