KSC1187 Datasheet - Fairchild Semiconductor

KSC1187 NPN Epitaxial Silicon Transistor

KSC1187 KSC1187 TV 1st, 2nd Picture IF Amplifier (Forward AGC) High Current Gain Bandwidth Product : fT=700MHz High Power Gain : GPE=24dB (TYP.) at f=45MHz 1 TO-92 1. Emitter 2. Base 3. Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage.

KSC1187_FairchildSemiconductor.pdf

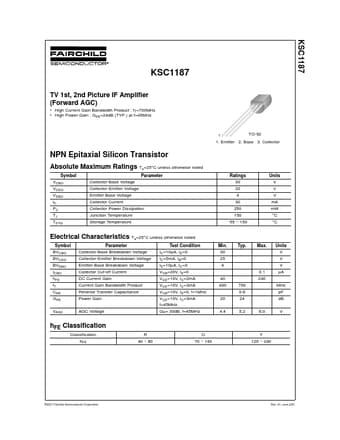

Preview of KSC1187 PDF
KSC1187 Datasheet Preview Page 2 KSC1187 Datasheet Preview Page 3

Datasheet Details

Part number:

KSC1187

Manufacturer:

Fairchild Semiconductor

File Size:

48.52 KB

Description:

Npn epitaxial silicon transistor.
