KSC3073 Datasheet - Fairchild Semiconductor

KSC3073 NPN Epitaxial Silicon Transistor

KSC3073 KSC3073 Power Amplifier Application Complement to KSA1243 1 I-PAK 1. Base 2. Collector 3. Emitter NPN Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC IB PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Dissipation (Ta=25°C) Collector Dissipation (TC=25°C) Junction Temperature Storage Temperature Value 30 30 5 3 0.6 1 15 150 - 55 ~.

KSC3073_FairchildSemiconductor.pdf

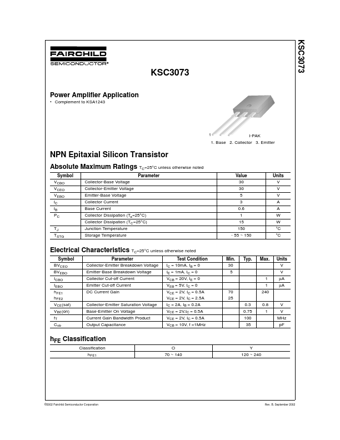

Preview of KSC3073 PDF
KSC3073 Datasheet Preview Page 2 KSC3073 Datasheet Preview Page 3

Datasheet Details

Part number:

KSC3073

Manufacturer:

Fairchild Semiconductor

File Size:

40.87 KB

Description:

Npn epitaxial silicon transistor.
