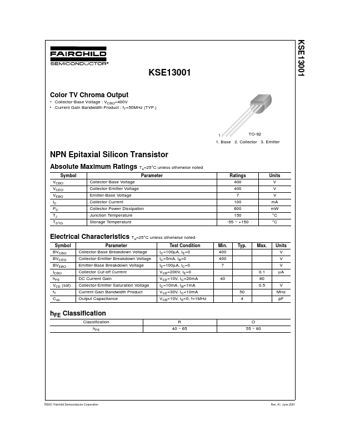

KSE13001
Color TV Chroma Output
- Collector-Base Voltage : VCBO=400V
- Current Gain Bandwidth Product : f T=50MHz (TYP.)
TO-92
1. Base 2. Collector 3. Emitter
NPN Epitaxial Silicon Transistor
Absolute Maximum Ratings Ta=25°C unless otherwise noted
Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Ratings 400 400 7 100 600 150 -55 ~ +150 Units V V V m A m W °C °C
Electrical Characteristics Ta=25°C unless otherwise noted
Symbol BVCBO BVCEO BVEBO ICBO h FE VCE (sat) f T Cob Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-off Current DC Current Gain Collector-Emitter Saturation Voltage Current Gain Bandwidth Product Output Capacitance Test Condition IC=100µA, IE=0 IC=5m A, IB=0 IE=100µA, IC=0 VCB=200V, IE=0 VCE=10V, IC=20m A IC=10m A, IB=1m A VCE=30V,...
