LM2903 - Dual Differential Comparator

Description

The LM2903, LM393/LM393A, LM293A consist of two independent voltage comparators designed to operate from a single power supply over a wide voltage range.

Features

  • Single Supply Operation: 2V to 36V.
  • Dual Supply Operation: 1V to 18V.
  • Allow Comparison of Voltages Near Ground Potential.
  • Low Current Drain 800A Typ.
  • Compatible with all Forms of Logic.
  • Low Input Bias Current 25nA Typ.
  • Low Input Offset Current 5nA Typ.
  • Low Offset Voltage 1mV Typ.

📥 Download Datasheet

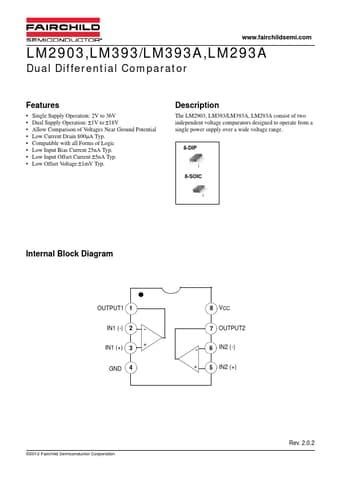

Datasheet preview – LM2903
